fille hexnya http://adf.ly/1WRpbX
NB : DS1307 bisa diganti dengan DS3231
Videonya
Sunday 31 January 2016
Wednesday 27 January 2016
Jam Digital (DS1307) & Temperatur (DS18B20) LCD5110
Video Hasilnya

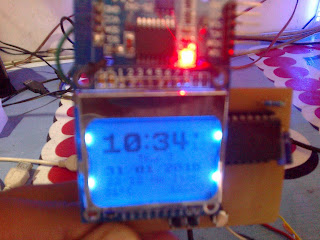

Gambar Hasilnya
Schematicnya
Simulasi Proteusnya
Friday 22 January 2016
Wednesday 20 January 2016
Sunday 17 January 2016
Saturday 16 January 2016
Thursday 14 January 2016
Wednesday 6 January 2016
Tuesday 5 January 2016
Monday 4 January 2016
Menampilkan Angka 0-9 di 7segmen CA dengan 74hc595
Simulasi Proteus yang Menampilkan Angka 0-9 pada 7segment Common Anoda (CA) dengan menggunakan IC 74hc595
Hasil Videonya :
Count Down 99-00 Bisa Disetting
Simulasi Proteus Count Down 7segment dari angka 99-00. yang bisa disetting angkanya dari 99 hingga 1
Schematicnya
file hexnya http://adf.ly/1Ud5l6
Sunday 3 January 2016
Saturday 2 January 2016
UP-Down Counter 3 digit
Hasil Videonya https://www.youtube.com/watch?v=cseiySal-s4
Kode Asmnya :
SP1 BIT P3.6
SP2 BIT P3.7
ORG 00H
AJMP MAIN
ORG 30H
MAIN:
CLR SP1
CLR SP2
K1:
LCALL DISP
JNB SP1,K2
LCALL DISP
JB SP1,$-3
INC 30H
MOV A,30H
CJNE A,#10,K1
MOV 30H,#0
INC 31H
MOV A,31H
CJNE A,#10,K1
MOV 31H,#0
INC 32H
MOV A,32H
CJNE A,#10,K1
MOV 32H,#0
LJMP MAIN
K2:
ACALL DISP
JNB SP2,K1
LCALL DISP
JB SP2,$-3
DEC 30H
MOV A,30H
CJNE A,#0FFH,K2
MOV 30H,#9
DEC 31H
MOV A,31H
CJNE A,#0FFH,K2
MOV 31H,#9
DEC 32H
MOV A,32H
CJNE A,#0FFH,K2
MOV 32H,#9
LJMP MAIN
DISP:
MOV DPTR,#TAB
MOV A,30H
MOVC A,@A+DPTR
SETB P2.2
MOV P0,A
ACALL DLY
CLR P2.2
MOV A,31H
MOVC A,@A+DPTR
SETB P2.1
MOV P0,A
ACALL DLY
CLR P2.1
MOV A,32H
MOVC A,@A+DPTR
SETB P2.0
MOV P0,A
ACALL DLY
CLR P2.0
RET
DLY:
MOV R6,#2
D1:
MOV R7,#248
DJNZ R7,$
DJNZ R6,$-4
RET
TAB: DB 0C0H;0
DB 0F9H;1
DB 0A4H;2
DB 0B0H;3
DB 099H;4
DB 092H;5
DB 082H;6
DB 0F8H;7
DB 080H;8
DB 090H;9
END
Friday 1 January 2016
